Kugelfischer mechanical fuel injection system
A variaty of new old stock, refurbished and used Kugelfischer mechanical fuel injection systems for sale.
Some systems are the BOSCH or Schäfer make.
Email us for more info.

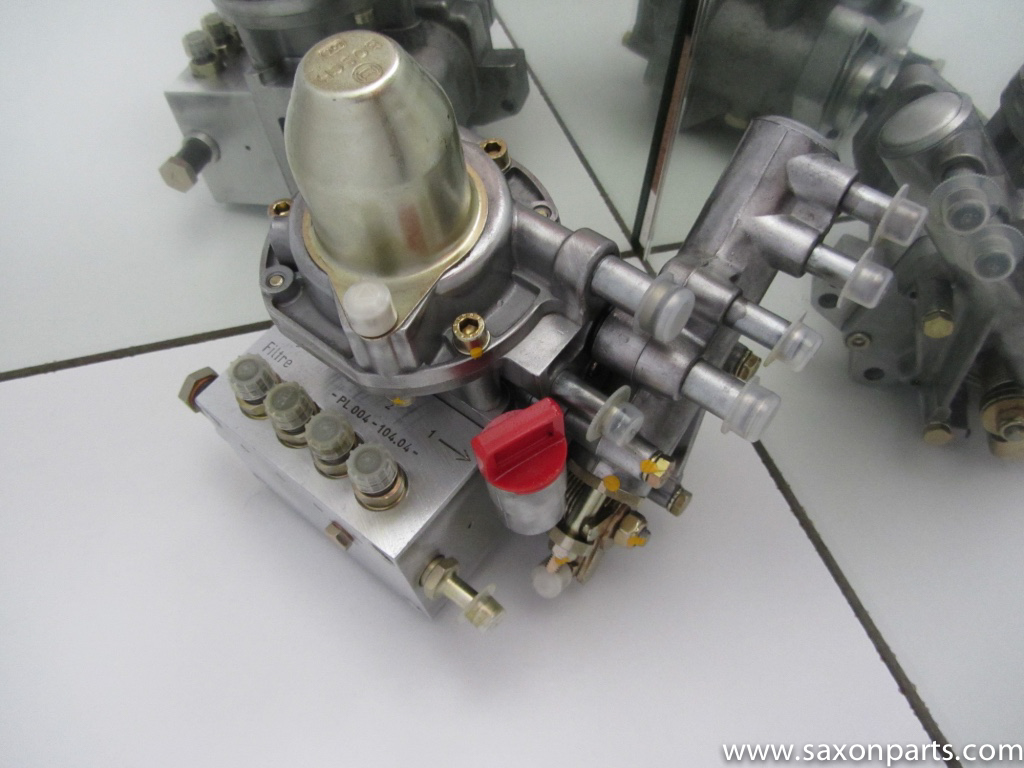

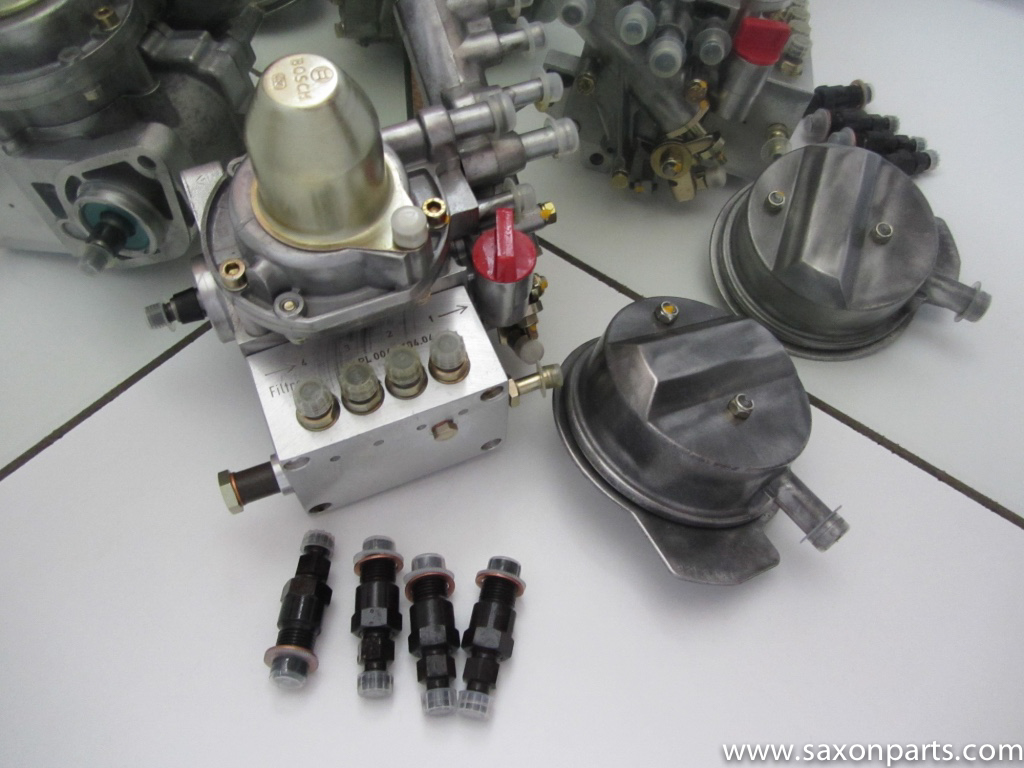

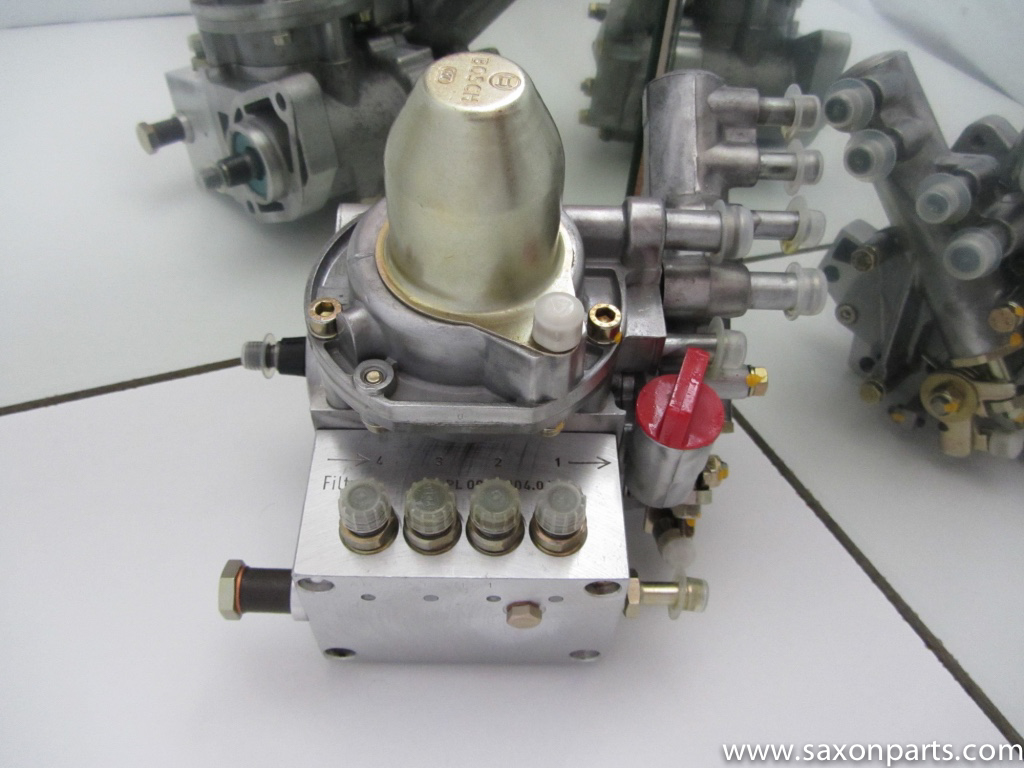

Pictured is a refurbished Bosch Kugelfischer pump from a Peugeot 504 2.0 PL004-104.04; we can refurbish your unit by our engineering shop. All on exchange base.
Send us your unit, injectors and altitude control box.
We use Bosch Kugelfischer test benches.
Kugelfischer is the name for a mechanical fuel injection (MFI) pump. It was produced by FAG Kugelfischer and later by Robert Bosch GmbH. Derived from diesel pumps from the early 1960s, the Kugelfischer system was the most widely-adopted mechanical injection pump for performance vehicles. It was among the first units with manufacturer-customizable fuel delivery maps which used rpm, throttle position, temperature, and sometimes barometric pressure as inputs. This was accomplished mechanically, not electronically.
In the late 1960s and early 1970s, it was fitted to a variety of production vehicles from BMW, Ford UK, Lancia, Peugeot, Ferrari and others. It is perhaps best known for its use by BMW in the 2000tii/2002tii (and later, the 2002 Turbo) performance sedan from 1970-1975, the 1964-1976 Porsche 911/911S/Carrera RS/RSR/Carrera MFI, and the BMW M1 Procar from 1978-1981. Due to high manufacturing cost however, it became economically undesirable with the introduction of cheaper electronic engine management systems (and continuous-injection mechanical systems) by the end of the decade. However, the Kugelfischer system continued to be used as a specialty injection pump for purpose-built race engines into the 1980s such as the 1982 Porsche 911 SC/RS.
