    BMW M30 CSL slide throttle kit (M52 race)

    Schnitzer type race E9 CSL Group 2

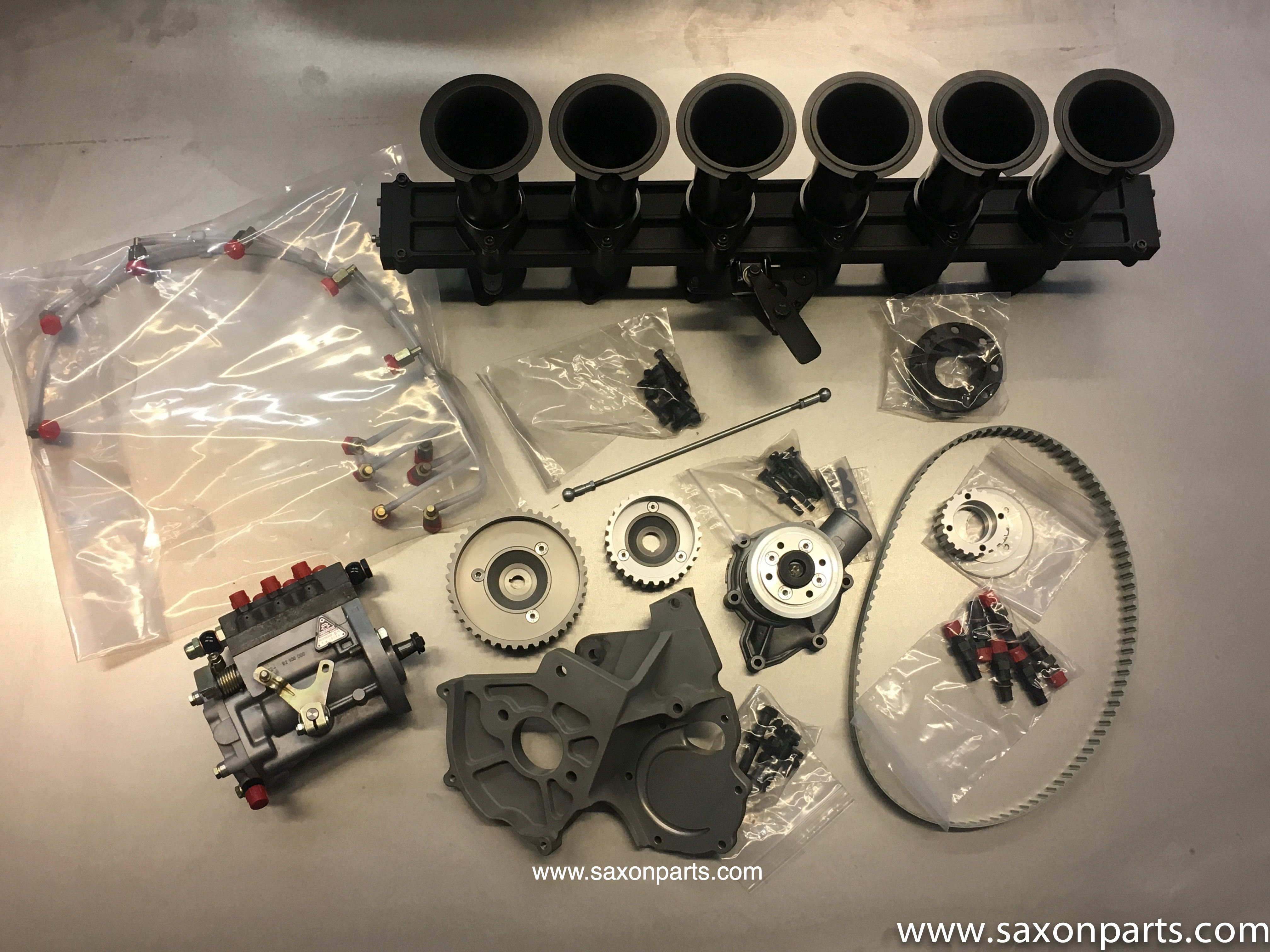

    We build up and supply the following installation for the M30 engine:

    – AC Schnitzer slide throttle, fixings are included.

    – Ram pipes / trumpets; machined from billet, welded bolt flanges + injector bosses to fit the Bosch DLO 90C injector.

    – Kugelfischer PL-06 7.5mm injection pump, modified to race CSL specification with factory Group 2 (2D calibration), dash-6 (AN) fuel feed and return PRV, AN3 oil feed, AN6 oil drain. Bench tested.

    – Schnitzer injection pump mounting (under the water pump), including all fixings.

    – Pulley Kit – crankshaft, Kugelfischer pump, generator/ alternator and water pump pulley.

    – New water pump (to ensure the bolt pattern is correct for the water pump pulley).

    – Set of six PA12 fuel lines for injection pump to slide throttle.

    – Throttle linkage kit from slide throttle to injection pump.

    – Six DLO90C type injectors

    Description

    BMW M30 CSL slide throttle kit (M52 race)

    Schnitzer type race E9 CSL Group 2

    We build up and supply the following installation for the M30 engine:

    – AC Schnitzer slide throttle, fixings are included.

    – Ram pipes / trumpets; machined from billet, welded bolt flanges + injector bosses to fit the Bosch DLO 90C injector.

    – Kugelfischer PL-06 7.5mm injection pump, modified to race CSL specification with factory Group 2 (2D calibration), dash-6 (AN) fuel feed and return PRV, AN3 oil feed, AN6 oil drain. Bench tested.

    – Schnitzer injection pump mounting (under the water pump), including all fixings.

    – Pulley Kit – crankshaft, Kugelfischer pump, generator/ alternator and water pump pulley.

    – New water pump (to ensure the bolt pattern is correct for the water pump pulley).

    – Set of six PA12 fuel lines for injection pump to slide throttle.

    – Throttle linkage kit from slide throttle to injection pump.

    – Six DLO90C type injectors

    Additional information

    Brand

    BMW

    Model

    E9

    Main part

    Fuel System

    Parts

    Throttle Bodies
