    Description

    Ferrari 575 GTC bodywork glass fiber for sale.

    Turn your Ferrari 575 road car into a 575 GTC!

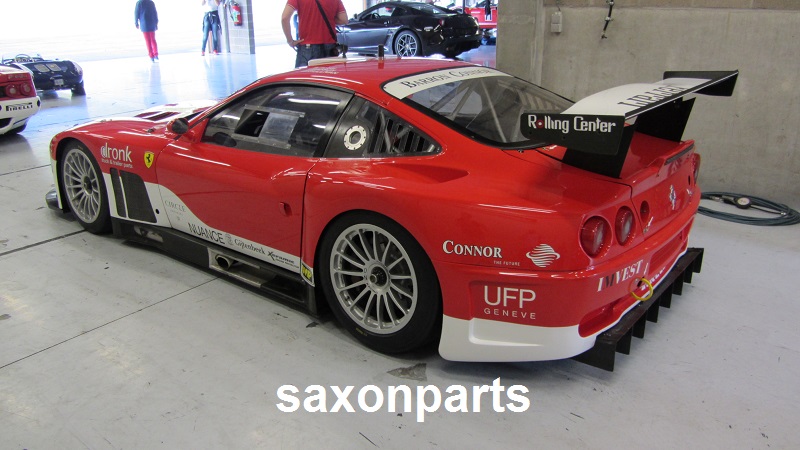

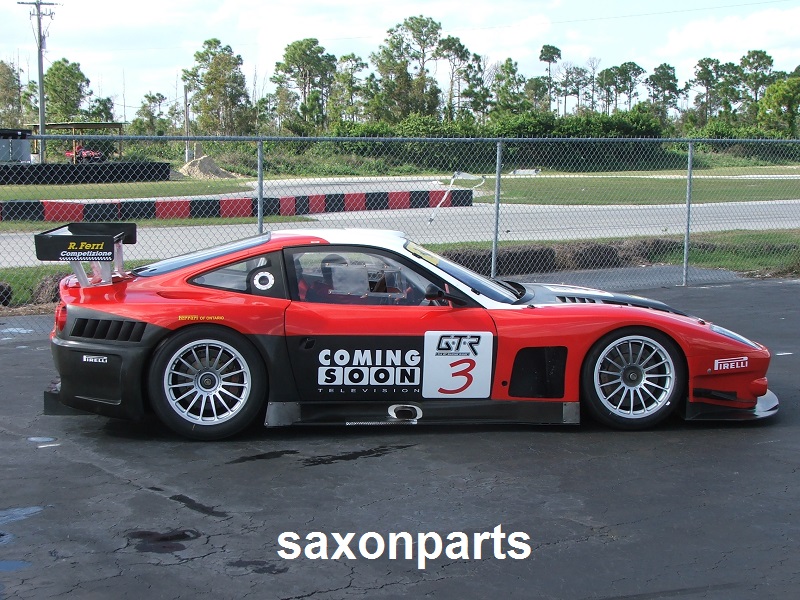

    On special request we can make the parts in carbon fiber. The cars on the photos are original carbon fiber.

    This is a motorsport product.

    Email us for more info.

    Ferrari 575 GTC

    The 575 GTC is developed by the Ferrari Corse Clienti department in collaboration with N.Technology to make the most of the original 575 M Maranello’s strong points.

    It has been adapted to meet the demands of the race track while complying with the specific regulations (its track has been increased).

    The bodywork has been lightened by using composites and features innovative aerodynamic solutions.

    The adjustable front spoiler, the double profile wing fitted with a gurney flap and the flat bottom along with the rear diffuser, which conforms to FIA rules, are the results of several hours of research in the wind tunnel.

    The chassis consists of a tubular steel framework to which the body panels are attached, while the suspension features double wishbone with adjustable antidive.

    The roll-cage was designed specifically to meet CSAI homologation requirements. The 575 GTC has specific
    brakes with ventilated discs.

    The engine is a 5,997 cc, 65 degree V12, fitted with Marelli electronics and punches out around 600 hp, despite the double restrictors specified by the FIA regulations.

    The six-speed sequential gearbox is coupled with a triple plate carbon clutch.
    Technical specifications
    Ferrari 575 GTC for sale
    Dimensions and weight

    Overall length: 4590 mm (180.7 in)

    Overall width front: 2035 mm (80.1 in)

    Height: 1170 mm (46.1 in)

    Wheelbase: 2500 mm (98.4 in)

    Front track: 1706 mm (67.2 in)

    Rear track: 1682 mm (66.2 in)

    Dry weight: 1150 kg (2535 lb)

    Fuel tank capacity: (FIA FT3) 100 L. (22.0 UK gal / 26.4 US gal)

    Tyres

    Front: 325/650 18”

    Rear: 325/705 18”

    Brakes

    Front: 380 x 30 mm (15.0 x 1.2 in)

    Rear: 355 x 28 mm (14.0 x 1.1 in)

    Engine

    Type: 65° V12

    Bore/stroke: 90 x 78.6 mm (3.54 x 3.09 in)

    Unit displacement: 499.75 cm3 (30.50 cu in)

    Total displacement: 5997 cm3 (365.96 cu in)

    Compression ratio: 12.9:1

    Maximum power: 444.9 kW (605 hp) @ 6300 rpm

    Maximum torque: 730 Nm (538.4 lbft) @ 5200 rpm

    Ferrari 575 GTC 2004

    Additional information

    Brand

    Ferrari

    Main part

    Body Shell

    Model

    575 GTC

    Parts

    Outer Panels
